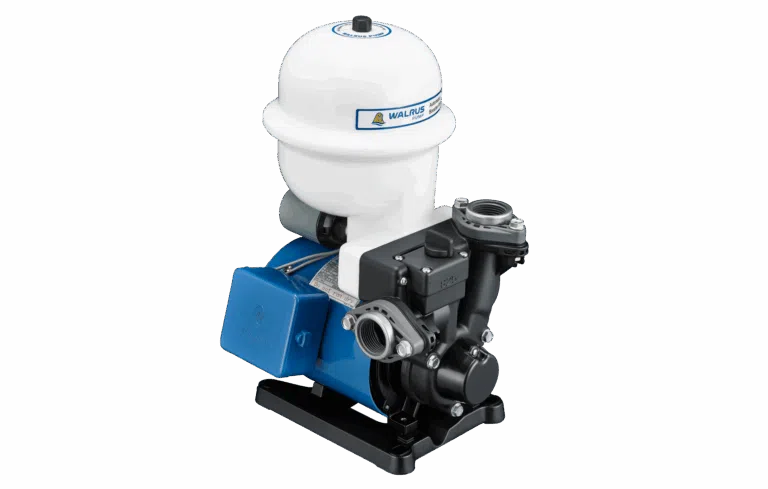

Manufactured with non-corrosive, rust proof materials and a specially designed corrosion resistant pressure tank. A silent-operating check valve and compact, easy-install housing make the TP8_PTB series ideal for boosting low incoming water pressure in homes, portable water supply, irrigation and washing systems.
0.18 – 0.37 kW
Up to 36M
Up to 42 L/min
TP820 · TP825
Available as TP820(T)B and TP825(T)B across 50Hz and 60Hz operation.
0.18 - 0.37 kW
Up to 30M
Up to 35 L/min
¾" - 1" / ¾" - 1"
0.18 - 0.37 kW
Up to 36M
Up to 42 L/min
¾" - 1" / ¾" - 1"
TP820— standard model name · T— temperature control (optional) · B — antimicrobial
Max. +40°C
+4°C ~ +40°C
Max. 8M
Lower than pressure switch OFF setting
Non-Corrosive Construction
Manufactured with non-corrosive, rust proof materials for long-term reliability.
Corrosion-Resistant Pressure Tank
Special design corrosive resistant pressure tank with good appearance.
Silent Check Valve
Appropriate, reliable check valve engineered for silent operation.
Compact Design
Compact design and small size for easy installation in tight spaces.
Factory Tested
Every pump is tested in our factory to ensure quality and reliability.
Efficient Cooling Motor
High performance, electricity saving motor with patented cooling construction.
Thermal Overload Protection
Built-in thermal overload protector guards against motor burn-out.
| No. | Part Name | Material |
|---|---|---|
| 1 | Fan Cover | ABS |
| 2 | Mounted Base | ABS |
| 3 | Shaft | SUS410 |
| 4 | Mechanical Seal | Ceramic + Carbon + NBR |
| 5 | O-Ring | NBR |
| 6 | Pump Casing | PPS |
| 7 | Cover Screw | Nylon |
| 8 | Steel Ball | SUS304 |
| 9 | Impeller | SUS304 |
| 10 | Gasket | Brass |
| 11 | Flange | NBR |
| 12 | Check Valve Set | SUS304 + Nylon |
| 13 | Spring | POM + NBR |
| 14 | Water Cover | SUS304 |
| 15 | Water Plug | PPS |
| 16 | Pressure Tank | Nylon |
| 17 | Pressure Switch | PP |
0.18 – 0.37 kW
Power Range
Up to 36M
Max Head
Up to 42 L/min
Max Flow
50Hz / 60Hz
Frequency Support
Max. 8M
Suction Head
