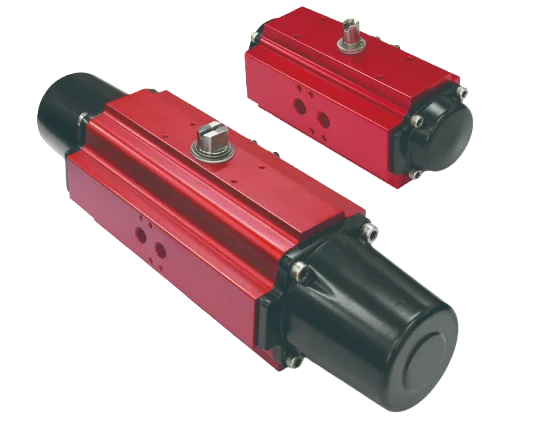

Advanced Scotch-Yoke technology delivering superior break-out torque for precise valve and damper control in the most demanding environments. Available in double acting (PD) and spring return (PS) configurations — torque outputs up to 4,000 Nm.
10 – 4,000 Nm
2 – 8 bar
-20°C to +80°C
≥ 1M cycles
10 – 4,000 Nm
2 – 8 bar (29 – 116 psi)
-20°C to +80°C
90° (adjustable stops)
IP66 / IP67
0.2 – 2.5 L/cycle
Anodized aluminum, SS internals
ISO 5211 / NAMUR / VDI-VDE 3845
Filtered dry air (5 µm)
≥ 1,000,000 cycles
ATEX, SIL2/3, CE
Pre-lubricated
Compact Design
Double acting and single acting spring return configurations in a compact form factor.
Scotch-Yoke Technology
Higher torque at end positions for heavy-duty valve and damper automation.
Spring Modules
Multiple interchangeable spring modules for varied torque output and fail-safe requirements.
Mounting Standards
ISO 5211, DIN 3337, NAMUR and VDI/VDE 3845 compliant.
Pre-Compressed Springs
Pre-compressed at assembly for safe, controlled handling and installation.
Certifications
ATEX 2014/34/EU certified. SIL3 capable as a standalone device.
Anodized Aluminum Body
Hard-anodized aluminum for superior corrosion resistance and durability.
Durability
Rated for over 1 million cycles under harsh industrial conditions.
Low Air Consumption
Efficient pneumatic design reduces compressed air usage and operating costs.
Accessory Ready
Mounting provisions for solenoid valves, limit switches, and positioners.
Customizable Drive Shaft
Drive shaft shapes and sizes configurable for multiple valve stem types.
10–4,000 Nm
Torque Range
IP66/67
Ingress Protection
ATEX
Hazardous Area Certified
SIL3
Safety Integrity Level
1M+ Cycles
Service Life
