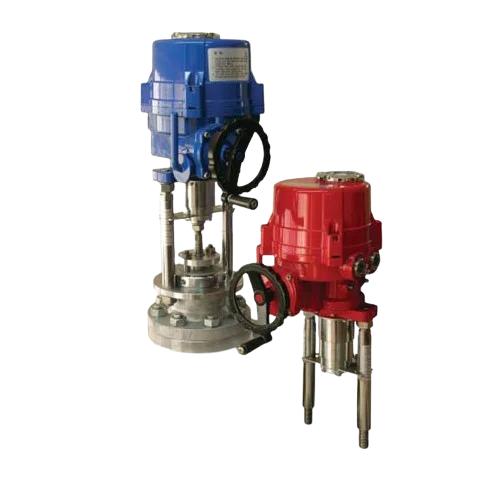

Robust linear electric actuators engineered for precise modulating control of globe, gate valves and dampers. High thrust capacity from 4–25 kN, IP67 protection, battery backup fail-safe, and full modulating control via 4–20mA / 0–10V.
4 – 25 kN
40 – 100 mm
IP67 / IP68
-20°C to +70°C
4 kN – 25 kN (model dependent)
40 – 100 mm
0.7 – 0.83 mm/sec
24VDC; 110/220VAC 1Ph; 380/440VAC 3Ph
IP67 (EN 60529) — IP68 optional
-20°C to +70°C
Aluminium alloy, hard anodized + epoxy coated
Thermal switch, Class F insulation
S2: 30 min max | S4: 50% ED
4–20mA, 0–10V, 2–10V, 1–5V, 0–5V
SPDT 1× open & close (250VAC, 10A)
0–1 kΩ potentiometer + 4–20mA output
Fail-safe — open / close / stay put
Handwheel with declutchable lever
Ex d IIB T4 (available)
5W anti-condensation (110/220VAC)
2 × 3/4" PF
7 – 22 kg (model dependent)
Robust Construction
Aluminium alloy housing with hard anodized treatment and epoxy powder coating for long-term durability.
High Thrust Output
4–25 kN thrust force for reliable control of globe valves, gate valves and linear motion applications.
Precision Linear Positioning
Smooth, accurate linear movement ensures stable modulating performance and precise valve positioning.
Wide Power Supply Options
Supports 24VDC, single-phase 110/220VAC, and three-phase 380/440VAC for flexible installation.
Manual Override
Handwheel with switchable declutchable lever for safe manual operation during maintenance or power failure.
High Safety & Protection
Built-in thermal protection with Class F insulation and IP67 enclosure for harsh environment operation.
Local & Remote Control
Supports local control units and remote analog signals including 4–20mA and voltage inputs.
Advanced Feedback
Optional potentiometer, current transformer and position feedback for precise closed-loop control.
Flexible Duty Cycles
Designed for S2 and S4 duty cycles — suitable for intermittent and modulating operation.
Easy Installation
Compact design with standardized mounting dimensions simplifies installation and maintenance.
Fail-Safe Backup
Optional battery backup with selectable open, close or stay-put position on power loss.
Explosion-Proof Option
Ex d IIB T4 configuration available for hazardous area and classified zone applications.
4–25 kN
Thrust Range
IP67
Ingress Protection
Ex d IIB T4
Hazardous Area Option
Battery Backup
Fail-Safe Operation
4–20mA
Modulating Control
