Products / Electric Actuators
Rotary & Linear Electric Valve Actuators
A full range of electric actuators engineered for precise and reliable valve automation. Quarter-turn and multi-turn configurations with on-off and modulating service — ISO 5211 direct-mount, IP67 protection, and full accessory support.
Valvenok supplies a complete range of electric rotary and linear actuators for precise valve automation. From compact quarter-turn units for general process control to high-torque multi-turn actuators engineered for demanding oil & gas, power generation and water treatment applications — every actuator is built to ISO 5211 mounting standards with full support for positioners, limit switches and solenoid valves.

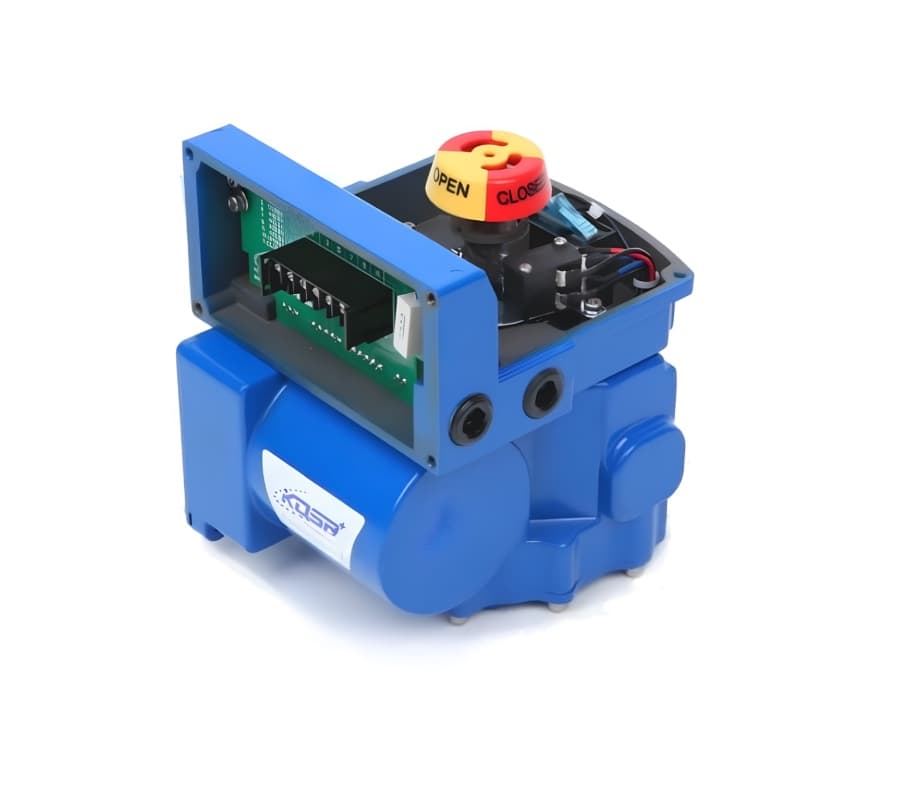

KE Series
Kosaplus compact electric quarter-turn actuators engineered for precise on-off and modulating valve automation. Robust construction with integrated control electronics for direct valve mounting across process plant and industrial service.
Quarter-Turn
On-Off & Modulating
Compact Design
Direct Valve Mount
Integrated Electronics

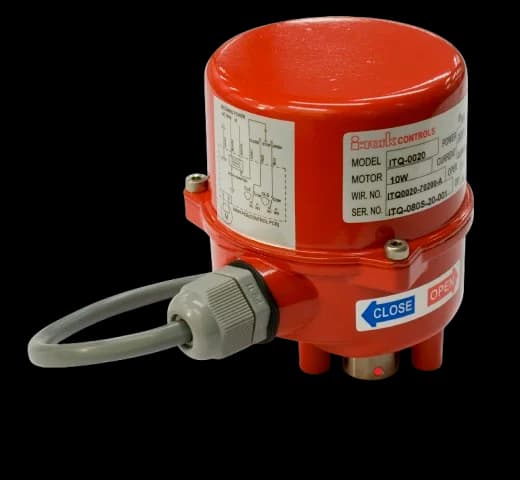

ITQ SERIES (Rotary)
High-performance rotary electric actuators with torque from 100–9,000 Nm. Hard-anodized aluminum housing with IP67/NEMA 4X protection, double worm self-locking gear, auto-declutching handwheel and mechanical torque sensing for safe, reliable valve automation.
100 – 9,000 Nm
IP67 / NEMA 4X & 6
-20°C to +70°C
ISO 5211 Mount
Double Worm Self-Locking
110/220VAC · 380/440VAC · 24VDC

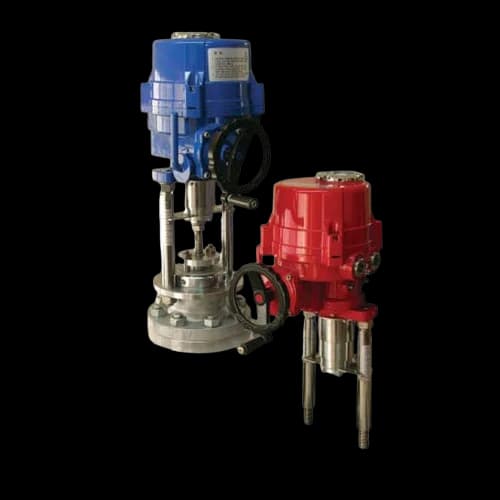

IQL SERIES (Linear)
Robust linear electric actuators engineered for precise modulating control of globe, gate valves and dampers. High thrust capacity from 4–25 kN, IP67 protection, battery backup fail-safe, and full modulating control via 4–20mA / 0–10V for demanding industrial automation.
4 – 25 kN Thrust
40 – 100 mm Stroke
IP67 / IP68 Optional
-20°C to +70°C
4–20mA / 0–10V Control
Battery Backup Fail-Safe

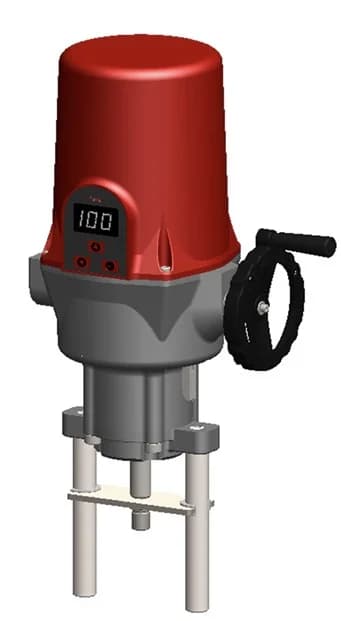

ITL Series (Linear)
Compact and powerful linear electric actuators with 100% duty cycle motor engineered for high-frequency modulating control. 1–10 kN thrust, IP66/67 protection, universal power supply and full 4–20mA / 0–10V control signal compatibility for demanding process automation.
1 – 10 kN Thrust
15 – 50 mm Stroke
100% Duty Cycle
IP66 / IP67
-20°C to +70°C
4–20mA / 0–10V Control

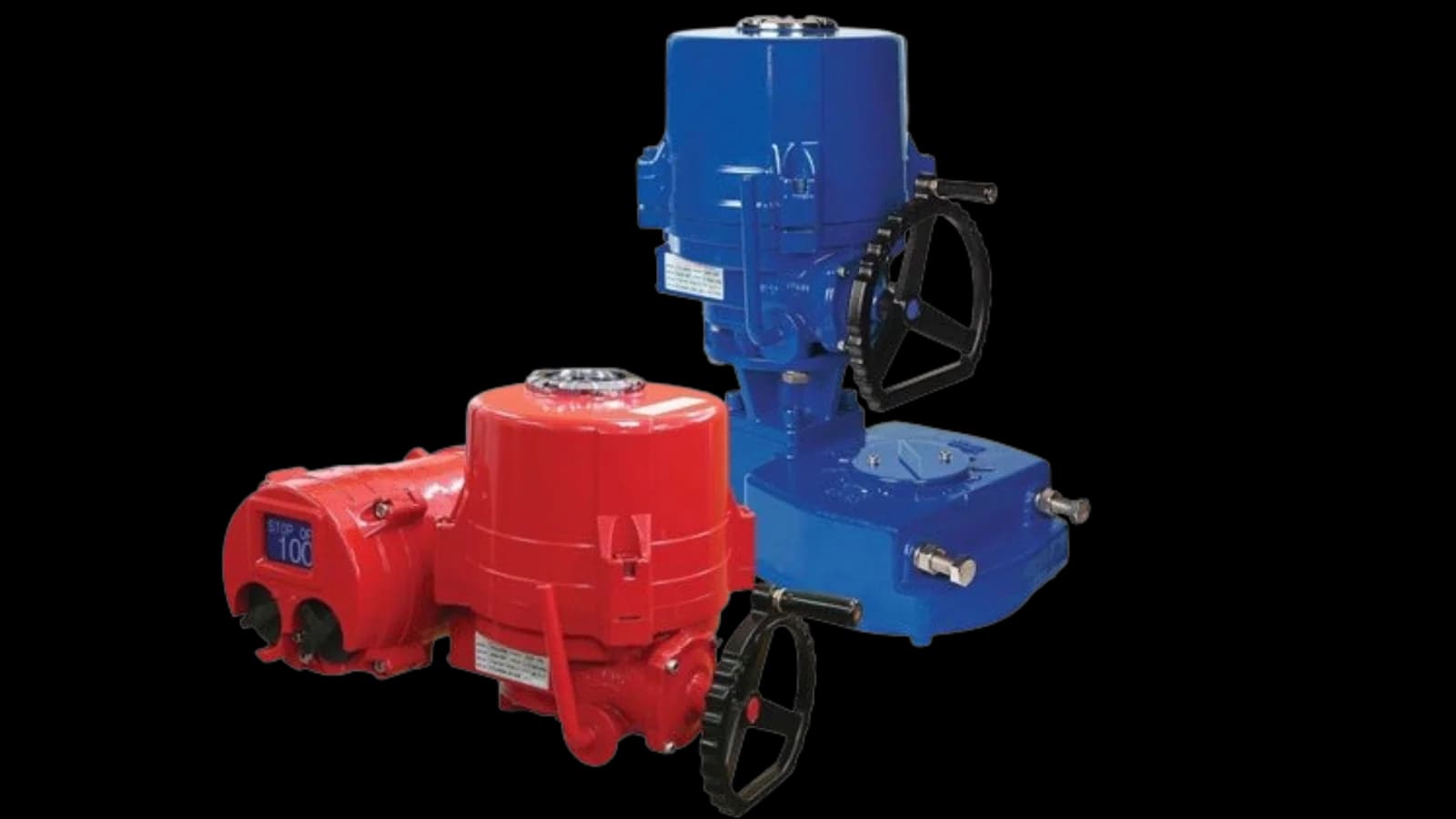

ITM Series (Multiturn)
Heavy-duty multi-turn electric actuators engineered for gate, globe and sluice valves requiring multi-revolution operation. Exceptional torque capability, IP68 waterproof protection, Hall incremental encoder feedback and smart local control for demanding Oil & Gas, Water Treatment and Petrochemical applications.
Multi-Turn
IP68 Waterproof
-20°C to +70°C
Hall Encoder Feedback
TENV High-Torque Motor
Ex d IIC T4 Optional

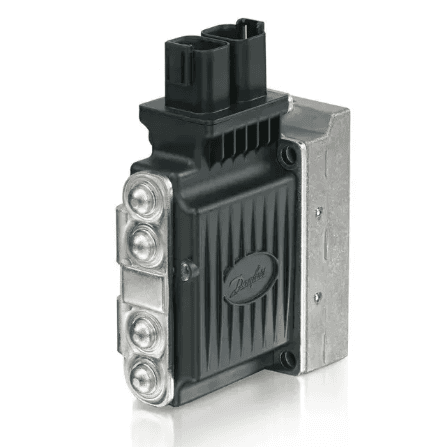

Danfoss PVE Series
Danfoss PVE series electrohydraulic actuators for precise proportional control of PVG directional valves. PVEA, PVEH, PVEM, PVEO, PVES, PVG and PVHC series with active and passive fault monitoring, Isobus communication and 12V / 24V operation.
PVEA / PVEH / PVEM / PVEO / PVES
Active & Passive Fault Mon.
1X4AMP / 1X4DIN / 1X4DEU
12V / 24V
Isobus (PVED32 CC)
34 Models Available
ISO 5211
Mounting Standard
IP67
Ingress Protection
100–9,000 Nm
Torque Range
Self-Locking
Double Worm Gear
Fast Dispatch
Availability
