Part Number : PTP-M08-SS
Specifications
material
SS316
tube O D
8mm
type
Metric
Quantity
£6.51 ex VAT
Product Description
Delivery & Returns

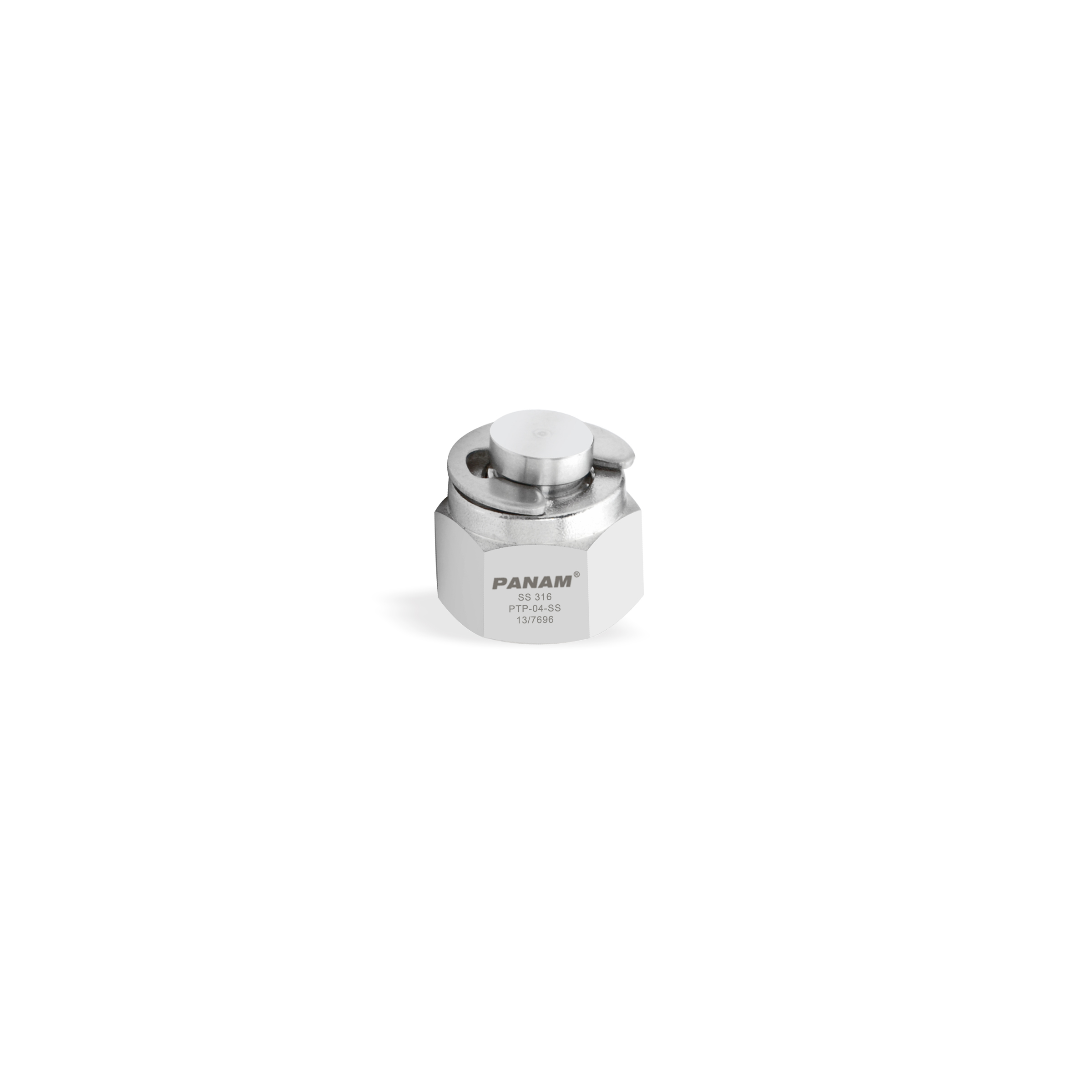

8mm Outside Diameter, Hydraulic Twin Ferrule Metric Compression Fitting, Plug, Tube x Tube, 316 Stainless Steel, PANAM
The PANAM Tube Plug (PTP) is engineered for securely plugging unused 8 mm metric tube fitting ports in instrumentation, pneumatic, and industrial systems. Manufactured in SS316, Monel, and Hastelloy, it delivers excellent corrosion resistance and durability across demanding environments. Rated for high-pressure service up to 10,000 psig, the plug provides a reliable, leak-tight seal suitable for both permanent isolation and temporary system maintenance.
Key Features
Tube Plug Design: Specifically designed to plug the port of a PANAM 8mm metric fitting.
Double-Ferrule System Compatibility: Works seamlessly with standard double-ferrule compression bodies.
High Pressure Rated: Capable of handling working pressures up to 10,000 psi (689 bar).
Stainless Steel Construction: Manufactured from SS316 for superior durability and corrosion resistance.
Applications
Sealing manifold ports, valves, and unused fitting connections in pneumatic and fluid systems.
