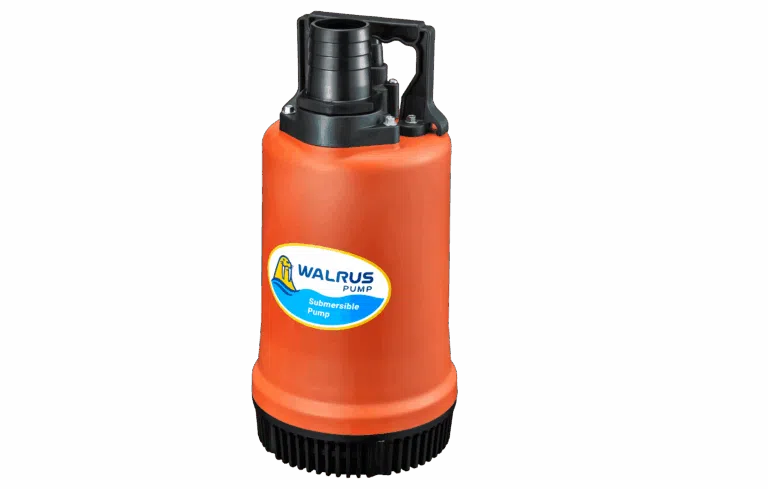

Submersible pumps engineered for clean water applications in a corrosion-resistant, compact design. Built-in thermal overload protection and IP68 rated construction make the PW series suitable for garden ponds, fish breeding, drainage and confined-space pumping.
100 – 800 W
Up to 14M
Up to 440 L/min
PW_A · PW_E
PW_A covers the wider power and flow range (PW100A – PW800A); PW_E is the compact, fixed-power option.
100 - 800 W
Up to 14M
Up to 440 L/min
1" or 2"
100 - 800 W
Up to 14M
Up to 440 L/min
1" or 2"
250 W
Up to 8M
Up to 140 L/min
1½"
250 W
Up to 9M
Up to 140 L/min
1½"
Sea Water
Available for use in sea fish breeding applications.
Float Ball Level Switch
Equipped with an automatic float ball level switch.
Level Regulator
Equipped with an electronic level regulator.
Low Suction
Low suction capability down to 1mm residual water depth.
Single-phase, 50 or 60 Hz
100W – 800W
B
IP68
4 or 5M (10M optional)
4°C ~ +35°C
PW100A
7 ± 1 cm
PW250A
9 ± 1 cm
PW400A
10 ± 1 cm
PW800A
12 ± 1 cm
Corrosion-Resistant Construction
Corrosion-resistant and compact design for reliable clean-water pumping.
Thermal Overload Protection
Motor includes built-in thermal overload protection against overheating.
IP68 Rated
Fully submersible design rated to IP68 for continuous underwater operation.
Confined Space Suitable
Compact housing suitable for cleaning washing towers and other confined-space pumping applications.
Sea Water Variant Available
R-coded models are rated for use in sea fish breeding and saltwater environments.
Automatic Level Control Options
F and C function codes add float ball or electronic level regulator control for unattended operation.
100 – 800 W
Power Range
Up to 14M
Max Head
Up to 440 L/min
Max Flow
IP68
Protection Rating
50Hz / 60Hz
Frequency Support
