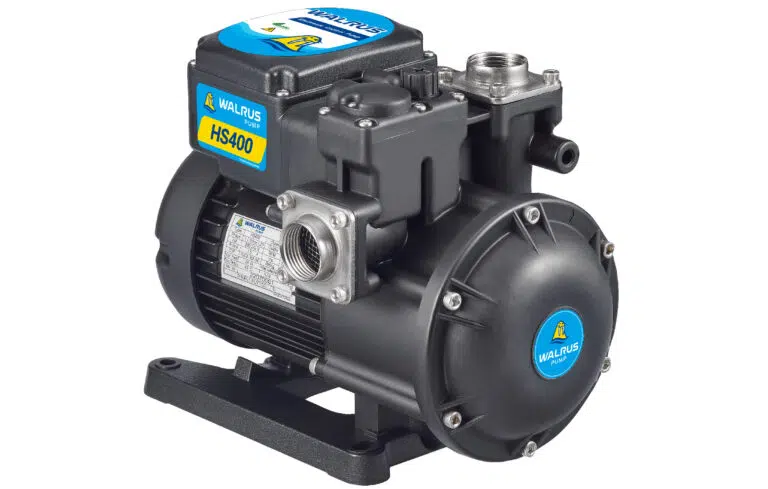

Multistage centrifugal pumps engineered for pressure boosting from city mains or private water systems. Close-coupled, space-saving construction with corrosion resistant wetted parts, thermostat dry-run protection, and steady, quiet, vibration-free operation.
0.18 – 3.7 kW
Up to 50M
Up to 270 L/min
HS · TS
HS covers HS400/HS800; TS spans TS400 through TS3700 with wider power and flow range.
0.37 - 0.75 kW
Up to 33M
Up to 110 L/min
1"
0.37 - 0.75 kW
Up to 46M
Up to 100 L/min
1"
0.18 - 2.2 kW
Up to 34M
Up to 250 L/min
1" - 2"
0.18 - 3.7 kW
Up to 50M
Up to 270 L/min
1" - 2"
Max. +40°C
+4°C ~ +40°C
Max. 8.5 kg/cm²
Multistage Design
Provides steady, quiet and vibration-free operation for years of trouble-free service.
Close-Coupled Construction
Close coupled, space-saving design provides easy installation.
Corrosion Resistant Parts
All parts in contact with water are made from corrosion resistant materials.
Salt Water Capable (TS)
TS series is capable of transferring both plain and salt water.
Thermostat Dry-Run Protection
Pump shuts off when water temperature exceeds 130°F (55°C), protecting against dry running.
Motor Thermal Overload
Built-in thermal overload protects against high operating temperatures and over-current (single-phase motors).
Self-Priming Lift
HS lifts water up to 6m; TS lifts water up to 7.6m, with foot valve and pump suction piping filled with water.
0.18 – 3.7 kW
Power Range
Up to 50M
Max Head
Up to 270 L/min
Max Flow
50Hz / 60Hz
Frequency Support
HS · TS
Series
