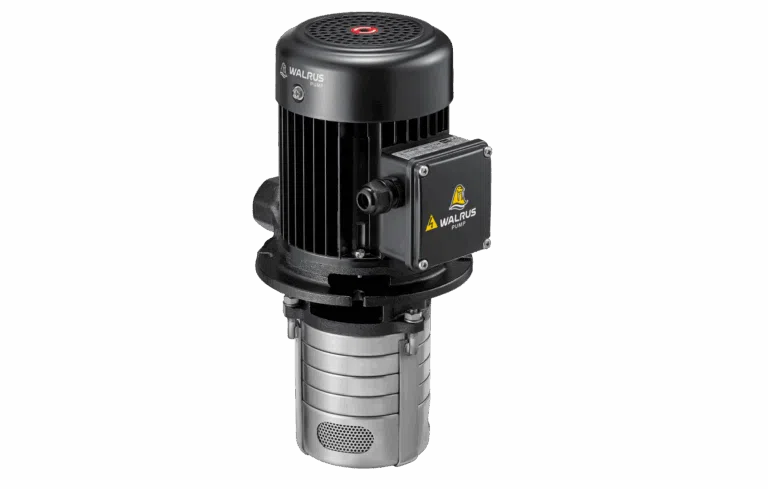

Vertical multistage centrifugal immersible pumps designed for industrial use, specially for machine tools. Self-priming and constructed from stainless steel, suitable for water, coolant, light oil and other clean, non-aggressive fluids across industrial circulation, washing and filtration systems.
0.22 – 18.5 kW
Up to 267M
Up to 650 L/min
TPRK_E · TPHK · TPK
TPRK_E covers the widest power and head range; TPHK offers a compact co-axial design; TPK is the lightest-duty, coupling-based option.
1.5 – 18.5 kW
Up to 267M
Up to 650 L/min
1¼" – 2"
Max. 30 kg/cm²
0.37 – 3.7 kW
Up to 90M
Up to 280 L/min
¾" – 1¼"
Max. 10 kg/cm²
0.22 – 1.58 kW
Up to 100M
Up to 100 L/min
¾"
Max. 10 kg/cm²
TPRK 1T ** - 36 E
Model type
Standard capacity (m³/h)
Number of stages / impellers
Drain back tank structure
TPHK 2T 6 - 4 S E
Model type
Standard capacity (m³/h)
Number of stages (n-1) / impellers
Stainless steel series
Drain back tank structure
TPK 4T 5 - 3 B
Pump and motor coaxial, model type
Number of impellers / standard capacity (m³/h)
Number of stages
Model without coupling design
Max. +40°C
+0°C ~ +90°C
Min. 40mm
IP54, Insulation Class F
Self-Priming Multistage Design
Vertical multistage centrifugal construction, self-priming, for reliable industrial fluid handling.
Stainless Steel Construction
Main working parts made from stainless steel across all three series for corrosion-free operation.
Drain-Back Tank (TPRK_E)
Liquid remains in the tank even if the mechanical seal leaks, protecting equipment and simplifying maintenance.
Cartridge Mechanical Seal
Cartridge-style mechanical seal on TPRK_E for easy servicing without full disassembly.
Co-Axial Pump/Motor (TPHK)
Impellers mounted directly on an extended motor shaft for a compact, co-axial design.
IE3 Motor Efficiency (TPHK)
TPHK series uses IE3-rated motors for improved energy efficiency in continuous industrial duty.
Wide Voltage Compatibility
50/60Hz dual-frequency motor codes across the range simplify global sourcing and stocking.
Mechanical Seal Options
Silicon carbide, carbon and multiple elastomer (HNBR/Viton/EPDM) seal face combinations available on request.
0.22 – 18.5 kW
Power Range
Up to 267M
Max Head
Up to 650 L/min
Max Flow
+0°C ~ +90°C
Liquid Temperature
IP54
Motor Enclosure
