All-in-one electronic control pumps rated for hot water up to +90°C. Pump, motor, pressure tank and controller in a single compact unit, with an automatic relief valve, anti-cycling protection and corrosion resistant construction throughout.
0.18 – 3.7 kW
Up to 50M
Up to 270 L/min

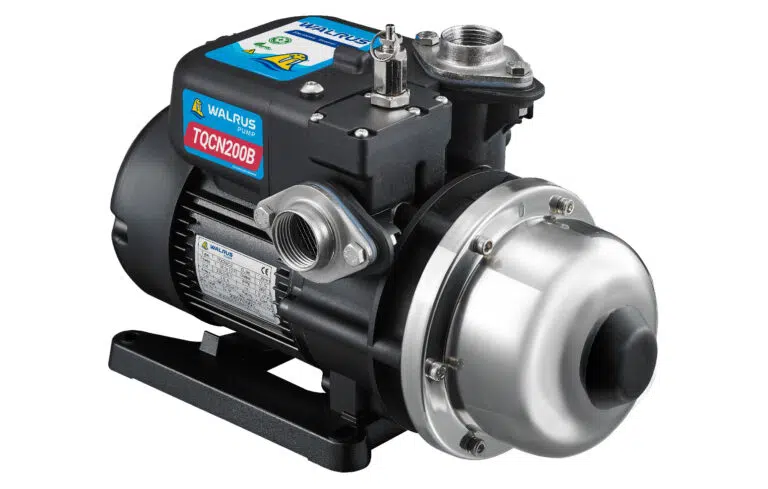

TQCN · HQCN
TQCN covers the higher power/flow range; HQCN is the compact, lower-flow option.
0.18 - 2.2 kW
Up to 34M
Up to 250 L/min
1" - 2"
0.18 - 3.7 kW
Up to 50M
Up to 270 L/min
1" - 2"
0.18 - 0.75 kW
Up to 33M
Up to 110 L/min
1"
0.18 - 0.75 kW
Up to 27M
Up to 120 L/min
1"
50Hz and 60Hz variants for HQCN200, HQCN400 and HQCN800.
| Model | Hz | Power (kW) | Volt (V) | Amps (A) | Preset (kg/cm²) | H max. (m) | Q max. (L/min) | N.W. (kg) | G.W. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| HQCN200 | 50 | 0.18 | 200-240 | 1.5 | 1.6 | 24 | 55 | 7.4 | 8.0 |
| HQCN400 | 50 | 0.37 | 200-240 | 2.8 | 2.0 | 31 | 85 | 8.4 | 9.0 |
| HQCN800 | 50 | 0.75 | 200-240 | 4.5 | 2.0 | 33 | 110 | 10.9 | 11.5 |
| HQCN200 | 60 | 0.18 | 110/220 | 4.0/2.0 | 1.6 | 23 | 60 | 7.4 | 8.5 |
| HQCN400 | 60 | 0.37 | 110/220 | 6.0/3.0 | 1.8 | 26 | 80 | 8.4 | 9.5 |
| HQCN800 | 60 | 0.75 | 110/220 | 9.0/4.5 | 2.0 | 27 | 120 | 10.9 | 11.5 |
| Model | Cycle (Hz) | A (mm) | B (mm) | C (mm) |
|---|---|---|---|---|
| HQCN200 | 50/60 | 355 | 153 | 158 |
| HQCN400 | 50/60 | 355 | 153 | 158 |
| HQCN800 | 50/60 | 410 | 162 | 167 |
TQCN series model-by-model electrical data and dimensions (TQCN200 – TQCN3700, single and 3-phase variants) will be added on the products page.
Max. +40°C
+4°C ~ +90°C
5 kg/cm²
Max. 85% (RH)
All-In-One Unit
Complete unit consisting of pump, motor, pressure tank and electronic controller in a single compact housing.
Constant Pressure Control
Built-in electronic controller starts the pump automatically when water is consumed and runs continuously until demand stops.
Rated for Hot Water
Liquid temperature rated up to +90°C, distinguishing this series from cold-water electronic control pumps.
Automatic Relief Valve
Relief valve automatically releases pressure when full system pressure exceeds 5 kg/cm².
Corrosion Resistant Construction
Constructed from top quality corrosion resistant materials for long-term reliability.
Anti-Cycling Feature
Prevents continuous starting and stopping caused by a dripping tap or minor system leak.
Motor Thermal Overload
Built-in thermal overload protects the motor against high operating temperatures and over-current.
Compact & Quiet Operation
Compact design and quiet running make the series suitable across a wide range of applications.
0.18 – 3.7 kW
Power Range
Up to 50M
Max Head
Up to 270 L/min
Max Flow
+4°C ~ +90°C
Liquid Temperature
5 kg/cm²
Auto Relief Pressure
