Double-acting pneumatic linear cylinders delivering superior performance for precise motion control in automation systems and valve actuation. Low-friction seals, universal ISO mounting, and seven corrosion protection grades for any environment.
3 – 7 bar
IP66
-20°C to +80°C
7 Options
3 – 7 bar
Filtered, dry compressed air
-20°C to +80°C
-10°C to +140°C
-45°C to +80°C
-55°C to +80°C
Hard anodized 25–30 µm body; Epoxy end caps
Hard anodized + PU paint; A2 fasteners
PU paint; AISI 316 pinion & A4 fasteners
15–20 µm coating; AISI 316 throughout
Suitable for fresh water immersion
ISO standard mounting
Low-friction for extended service life
ISO 3322, 4393, 5597

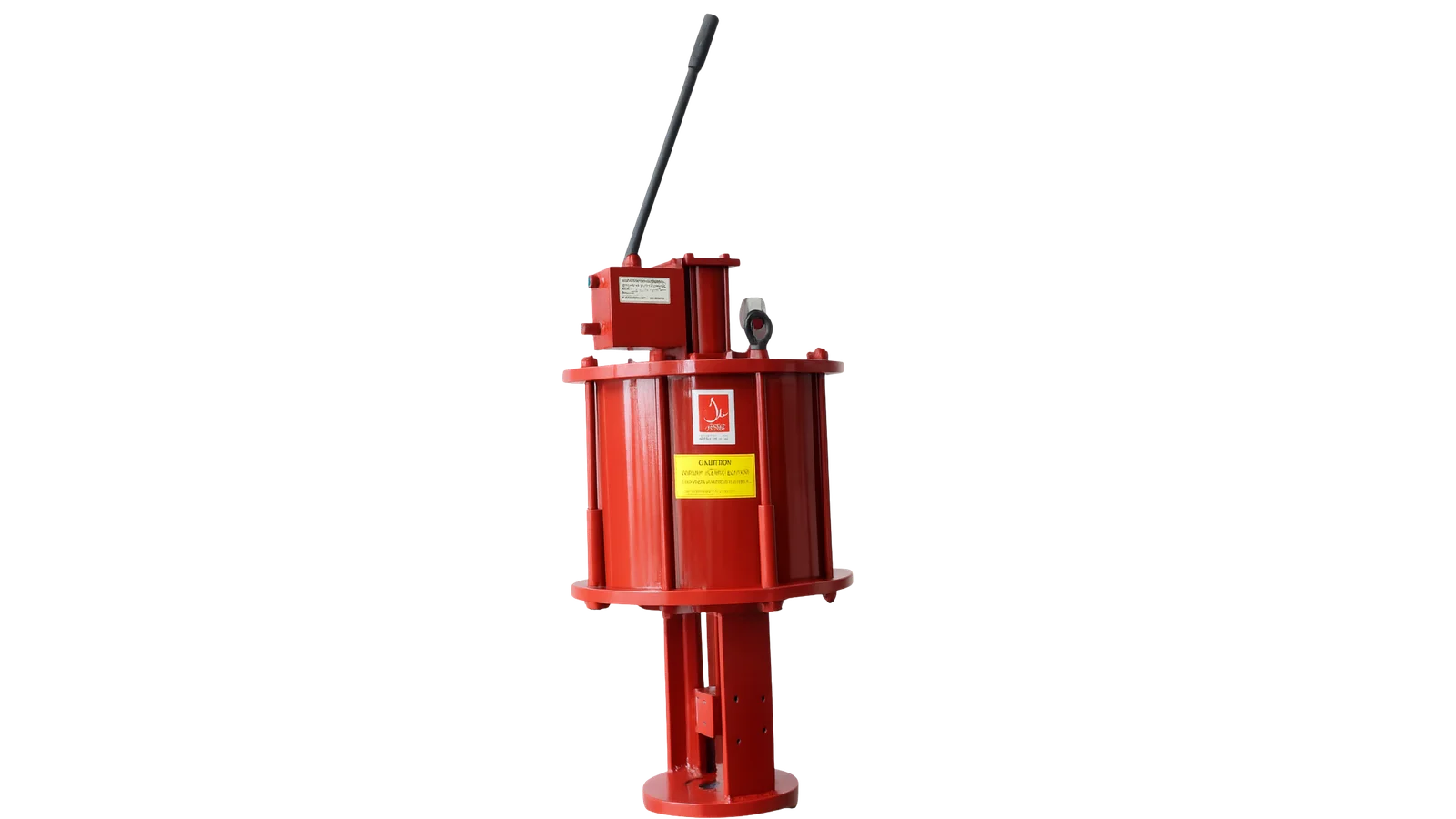

PLDS linear actuators can be supplied with one of four manual overrides, to move the valve by hand when there is no air. Figures from Susin’s PLDS catalogue.
Side-mounted worm gear override, self-locking, with large ratios for low-speed, high-thrust operation. MTG-100 to MTG-1800, matched to each PLDS size.
| Actuator size | Override model | Max thrust (N) | Max thrust (lbs) | Turns per mm / inch | Rim pull (N / lbs) |
|---|---|---|---|---|---|
| PLDS-100 | MTG-100 | 160,000 | 35,971 | 0.3 / 8.4 | 360 / 81 |
| PLDS-125 | MTG-100 | 160,000 | 35,971 | 0.3 / 8.4 | 360 / 81 |
| PLDS-160 | MTG-100 | 160,000 | 35,971 | 0.3 / 8.4 | 360 / 81 |
| PLDS-180 | MTG-100 | 160,000 | 35,971 | 0.3 / 8.4 | 360 / 81 |
| PLDS-200 | MTG-100 | 160,000 | 35,971 | 0.3 / 8.4 | 360 / 81 |
| PLDS-230 | MTG-200 | 240,000 | 53,957 | 0.3 / 8.4 | 360 / 81 |
| PLDS-250 | MTG-200 | 240,000 | 53,957 | 0.3 / 8.4 | 360 / 81 |
| PLDS-280 | MTG-200 | 240,000 | 53,957 | 0.3 / 8.4 | 360 / 81 |
| PLDS-300 | MTG-200 | 240,000 | 53,957 | 0.3 / 8.4 | 360 / 81 |
| PLDS-350 | MTG-200 | 240,000 | 53,957 | 0.3 / 8.4 | 360 / 81 |
| PLDS-380 | MTG-200 | 240,000 | 53,957 | 0.3 / 8.4 | 360 / 81 |
| PLDS-430 | MTG-200 | 240,000 | 53,957 | 0.3 / 8.4 | 360 / 81 |
| PLDS-480 | MTG-200 | 240,000 | 53,957 | 0.3 / 8.4 | 360 / 81 |
| PLDS-530 | MTG-300 | 300,000 | 67,446 | 0.3 / 8.4 | 360 / 81 |
| PLDS-580 | MTG-400 | 380,000 | 85,432 | 0.3 / 8.4 | 360 / 81 |
| PLDS-630 | MTG-400 | 380,000 | 85,432 | 0.3 / 8.4 | 360 / 81 |
| PLDS-680 | MTG-650 | 600,000 | 134,892 | 0.3 / 8.4 | 360 / 81 |
| PLDS-730 | MTG-650 | 600,000 | 134,892 | 0.3 / 8.4 | 360 / 81 |
| PLDS-780 | MTG-650 | 600,000 | 134,892 | 0.3 / 8.4 | 360 / 81 |
| PLDS-830 | MTG-900 | 870,000 | 195,594 | 0.3 / 8.4 | 360 / 81 |
| PLDS-880 | MTG-900 | 870,000 | 195,594 | 0.3 / 8.4 | 360 / 81 |
| PLDS-930 | MTG-900 | 870,000 | 195,594 | 0.3 / 8.4 | 360 / 81 |
| PLDS-980 | MTG-1800 | 1,800,000 | 404,676 | 0.3 / 8.4 | 360 / 81 |
Smooth Motion
Low-friction sealing for consistent, smooth linear travel.
Adjustable Stroke
Allows precise motion control tailored to application requirements.
ISO Construction
Plug-and-play ISO compliant fit for universal compatibility.
High Operating Pressure
Operates up to 150 psi delivering more thrust than standard actuators.
Tight Valve Shutoff
High thrust ensures reliable valve shutoff with minimal maintenance.
Fast Response
Double-acting system provides fast response to signal changes.
NBR Seals
Standard NBR seals with optional specialty seal materials available.
Guide Rod
Guide rod included for large bore sizes above 250mm.
Field Reversible
Reversible configuration available for models above 100mm bore.
Quad O-Ring
Quad-type O-ring used for bores over 200mm for superior sealing.
Premium Cylinder Surface
Honed and hot chrome-plated cylinder bore for extended longevity.
Zinc Epoxy Coated Parts
End flanges and pistons coated for enhanced corrosion resistance.
ISO Compliant
Designed to ISO 3322, 4393 and 5597 standards.
Brass Guide Bush
Heavy-duty brass guide bush improves component lifespan.
Robust Material Options
Cast steel standard; stainless steel or aluminum on request.
Heavy-Duty End Covers
Cast iron end covers as standard; steel optional.
Lightweight & Corrosion-Resistant
Optimized weight with anti-corrosion design for demanding environments.
Custom Options
Custom thrust and stroke options available upon consultation.
3–7 bar
Operating Pressure
IP66
Ingress Protection
-55°C / +140°C
Temp Options
7 Grades
Corrosion Protection
ISO 3322
Compliance Standard
