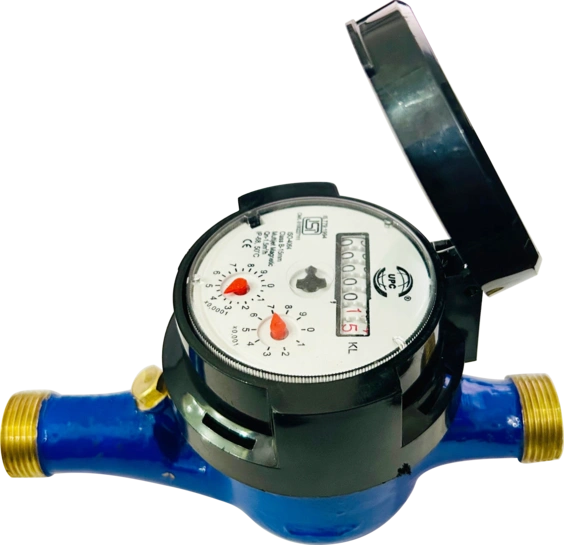

ISO 4064 and ISI compliant multi-jet cold water meter with brass body and thread end connections. Designed for low pressure loss, lower transmission resistance and long working life. Available in sizes 15mm to 50mm, rated to 1.6 MPa Class B. 15mm size is ISI marked.
UPC-MJTC-112
15mm – 50mm
< 1.6 MPa
< 50°C
UPC-MJTC-112
15mm – 50mm
ISO 4064 / ISI
< 50°C
< 1.6 MPa (Class B)
Multi-jet, Thread End, Brass Body
Brass
Thread End
Multi-jet
15mm ISI Marked
Class B
Cold Water Metering
Multi-Jet Design
Multiple inlet jets ensure balanced and accurate measurement across the full flow range.
Low Pressure Loss
Optimised internal geometry minimises pressure drop across the meter during operation.
Lower Transmission Resistance
Reduced mechanical resistance in the drive train ensures consistent, reliable readings over time.
Long Working Life
Brass body construction and quality internals deliver extended service life in demanding conditions.
ISO 4064 / ISI Compliant
Fully compliant with ISO 4064 metering accuracy standards and ISI marked at 15mm.
Brass Body
Robust brass body offers excellent corrosion resistance and durability for cold water applications.
